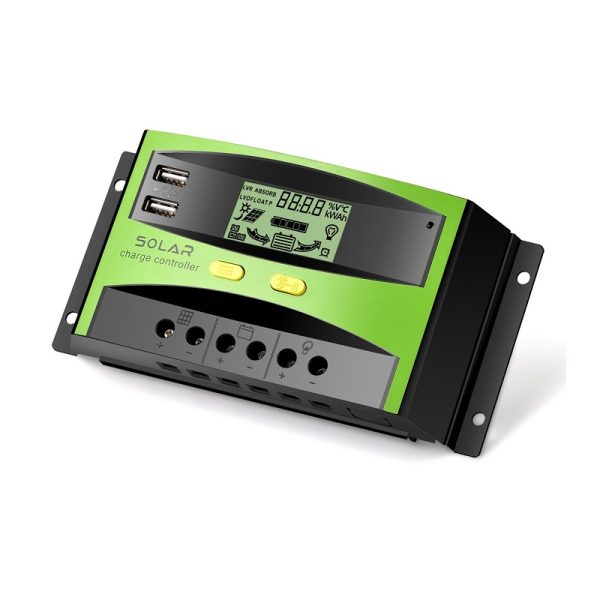

Photovoltaic charging controller – 30a – 673042

Digital charging regulator for photovoltaic panels. Suitable for 12V or 24V photovoltaic systems 30A. Large legible LCD display for easy visualization of information such as: charging current, discharge and battery voltage every 5 sec. Automatic system voltage recognition. It has an electronically controlled circuit. PWM charging technology with the smallest losses in the system.
LD series regulator with ISO9001: 2008 Accredited CE specifications and certifications

Characteristics:

• LCD display
• Intelligent PWM Charging mode
• Automatically activate system voltage
• Brief Key Operation
• Adjustable Charging & Discharging Parameter
• Settable Working Modes of Loads
• Delayed Auto Restart After Overloading

Protections:

• Battery Reversed Protection
• Protection for Battery Back Discharging
• Protection for Battery Low Voltage
• Overloading & Short-Circuit Protection

Specifications:

• Rated Working Voltage: 12V / 24V
• Rated Working Current: 30a
• Voltage of Solars Panel: <50V • Float Charging Voltage (Settable): 13.7V / 27.4V • Low Voltage Protection (Settable): 10.7V / 21.4V • Low Voltage Recovery (Settable): 12.6V / 25.2V • No Load Loss: <30AmA • Loop Voltage Droop: <200mA • Charging Mode: PWM Mode • Temperature Compensation: -4MV/Cell/℃ • Install Maximum Cable: 25mm2) • Working temperature: -20 ℃ ~ 50 ℃ • Storage Temperature: -30 ℃ ~ 70 ℃ • Temperature Requirement: ≤90 ％, no condensation • Dimensions: 190*108*41.5 mm • Weight: 520g
